Residential Smart Meter

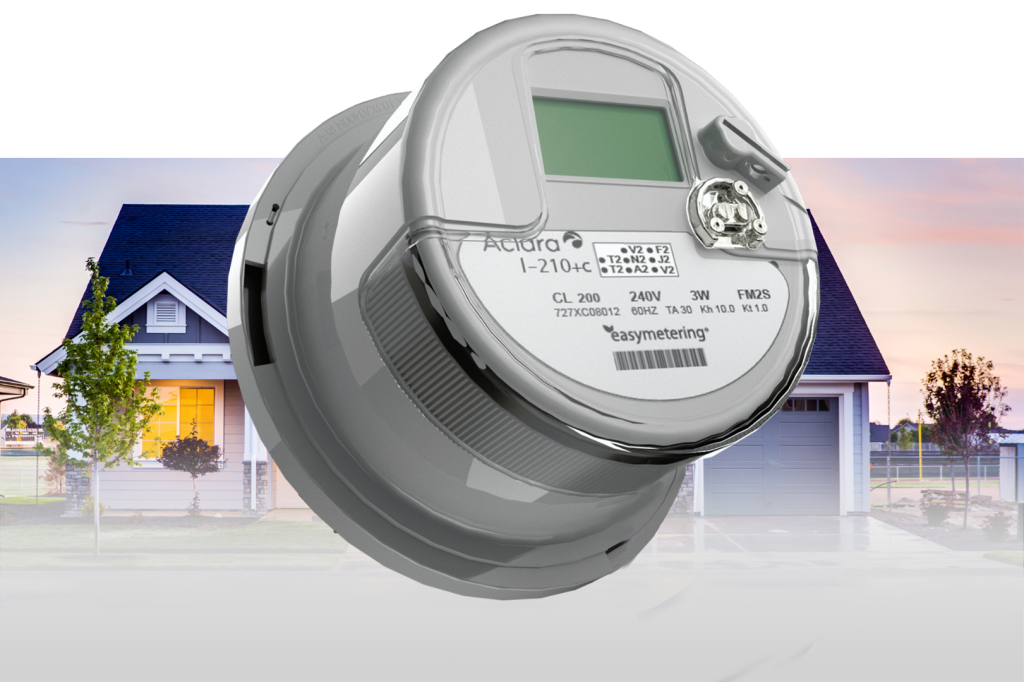

Aclara’s I-210 line of single-phase residential electric meters brings a range of residential solutions from core electronic energy-only meters to smart metering solutions with advanced functionality for new Smart Grid deployments.
The powerful and easy-to-use meters give electric utilities real-time instrumentation, power quality monitoring, and access vital usage data.
IEC Residential Smart Meter

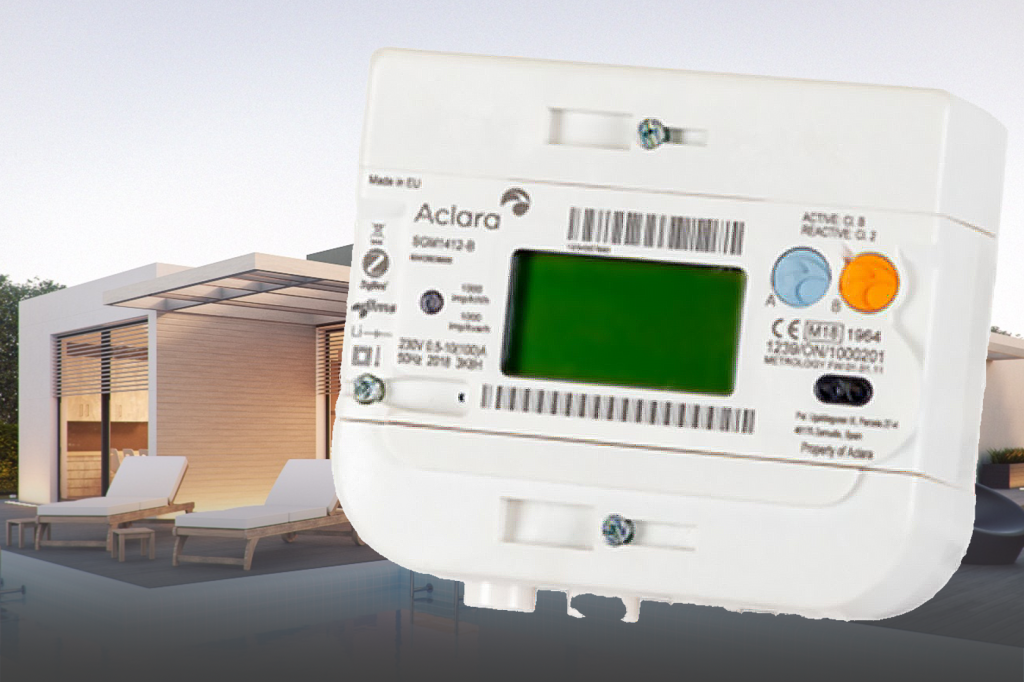

The SGM1400 SMETS2 smart meter from Aclara is an integral part of the UK dual-fuel smart metering strategy for both residential small commercial installations. The advanced modular family of products with single-phase variants offers full two-way secure communications between the meter, CSP communications hub, and DCC head-end solutions.
The SGM1400 supports a UK CSP Intimate Communications Hub for a choice of HAN/WAN communications and features an on-board ZigBee RF interface with an industry-standard Smart Energy Profile for HAN communications, Communications Hub and IHD and is now certified to three important ISO standards for SGM Smart Meters series – ISO 9001:2015, ISO 14001:2015 and ISO 27001:2013.
Residential Smart Meter

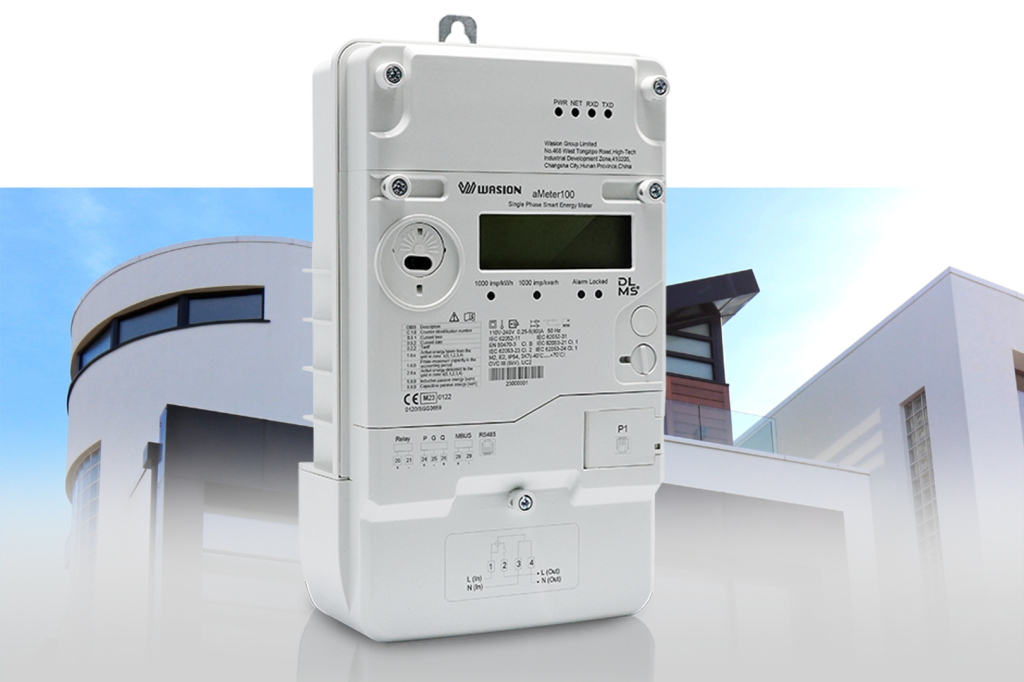

aMeter100 is the high-end smart energy meter that Wasion Group customized for the international high-end AMI market. The meter is provided with forward and reverses active energy, input/output apparent energy metering functions, multiple electricity anti-tamper detecting function, maximum 8 tariffs TOU design, null line current and maximum demand measurement function, high-intensity magnetic field function, telecommunications control relay on/off function. aMeter100 adopts the AMI communication protocol DLMS/COSEM standard commonly used internationally currently, which has passed the DLMS CTT tests and supports local or remote online software update function. The power supply design of the product adopts a switching power supply, suitable for various domestic and overseas standard voltage specifications. The connection methods of aMeter100 is full current direct connection meter wiring, suitable for industrial & commercial users and resident users, mainly provided with active and reactive energy metering, with the hardware of which mainly consisted of current shunt or transformer (for CT meter), dedicated electric energy metering chips, resourceful management MCU, high-precision dedicated clock chip and long-life high-temperature LCD display and others. The total current meter adopts a manganin shunt for current signal sampling and long-life high-temperature LCD display, providing effective magnetic field interference suppression.
For more information, please contact us!
